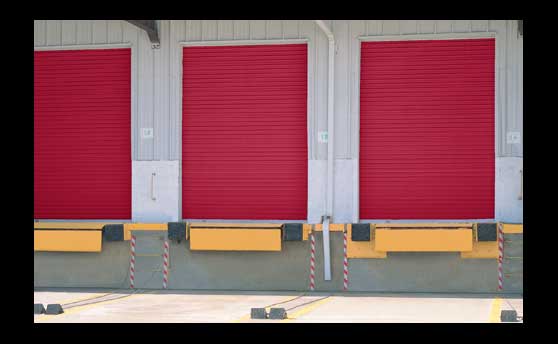

Commercial Roll-Up Steel Door With Windload Rating.
DS-350 doors have State-wide Florida Product Approval for windload protection up to 150 mph and have been third party tested for uniform static air pressure.
DS-350 roll-up doors are available in round or square profiles. The continuous curtains are made from hot-dipped galvanized steel, and then finished with silicone polyester paint for beauty and durability. Heavy-duty 13 gauge guides attach to 8 gauge wall angles to give maximum windload protection. Installation to masonry or steel is quick and simple with no special preparation or overhead tracks needed.
Steel slide-bolt assemblies at each bottom corner secure the closed door from inside. For added security, the slide-bolts also accept padlocks. A sliding curtain lock is available for securing the door from outside.
DS-350 Windload Roll-Up Steel Doors are available in sizes up to 16' X 16', and come in a variety of standard and special colors. You get the doors you need with timely delivery and attractive pricing. Write, call or fax us for specifying or ordering information.
WINDLOAD RATING
|
||||
Maximum Width
|
Panel Profile
|
Design Pressure
|
Equiv. Basic Wind Speed
|
|
EXP. B
|
EXP. C
|
|||
10'0"
|
ROUND
|
+/- 37 PSF
|
150 MPH
|
130 MPH
|
16'0"
|
+/- 28 PSF
|
130 MPH
|
110 MPH
|
|
10'0"
|
SQUARE
|
+/- 44 PSF
|
150 MPH
|
140 MPH
|
12'0"
|
+/- 40 PSF
|
130 MPH
|
||
16'0"
|
+/- 34 PSF
|
