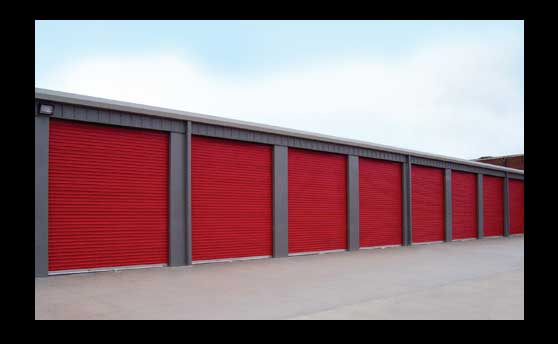

Commercial Roll-Up Steel Door With Highest Windload Rating.
DS-357 doors have State-wide Florida Product Approval for windload
protection up to 52 PSF and have been third party tested for uniform
static air pressure.
DS-357 roll-up doors are round profile. The continuous curtains are
made from hot-dipped galvanized steel, and then finished with silicone
polyester paint for beauty and durability. Heavy-duty 13-gauge guides
attach to 8-gauge wall angles to give maximum windload protection.
Installation to masonry or steel is quick and simple with no special preparation or overhead tracks needed.
Steel slide-bolt fits onto a molded slide inside of patented corner
block. For added security, the slide-bolts also accept padlocks. A
sliding curtain lock is available for securing the door from outside.
DS-357 Windload Roll-Up Steel Doors are available in sizes up to 16' X
16', and come in a variety of standard and special colors. You get the
doors you need with timely delivery and attractive pricing.
WINDLOAD RATING
|
||||
Maximum Width
|
Panel Profile
|
Design Pressure
|
Equiv. Basic Wind Speed
|
|
EXP. B
|
EXP. C
|
|||
10'0"
|
ROUND
|
+/- 37 PSF
|
150 MPH
|
130 MPH
|
16'0"
|
+/- 28 PSF
|
130 MPH
|
110 MPH
|
|
10'0"
|
SQUARE
|
+/- 44 PSF
|
150 MPH
|
140 MPH
|
12'0"
|
+/- 40 PSF
|
130 MPH
|
||
16'0"
|
+/- 34 PSF
|
