- SIZES UP TO 12' WIDE AND 12' HIGH
- MAX STEEL GAUGE = 26
- 2" FLAT SLATS
- 20 PSF WINDLOAD STANDARD
- DURABLE & ECONOMICAL
Reliable And Durable Rolling Service Doors For Medium-Duty Use

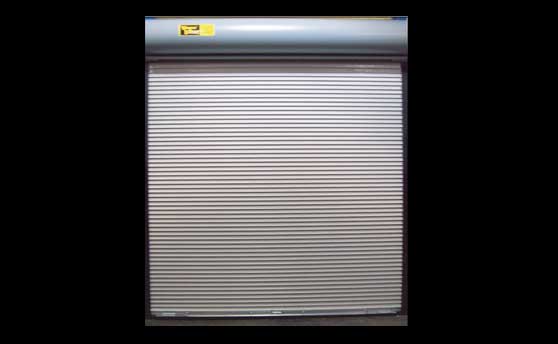

The Model 926 rolling steel service door provides an economical yet durable solution for self-storage to industrial openings. Yet it does not sacrifice on essential features and benefits needed in such applications.
Materials & Construction
Wayne-Dalton’s 926 Series rolling doors are composed of flat-faced slats that provide a natural water-shed, helping to reduce corrosion. The slats are designed with free-acting interlocking joints that permit easy articulation when the door coils.
The 926 Series features a strong double-angle bottom bar that reinforces the lower edge of the curtain against wind pressure and permits varied lock, astragal and safety edge options. This bottom bar is designed for easy installation and does not require fasteners protruding into the guide openings, so the bottom bar does not interfere with door operation. Zinc plated, cast iron windlocks add strength and prevent lateral slat movement.
The counterbalance assembly consists of a spring barrel which serves as a load-carrying beam. It encases the counterbalance mechanism and provides the axis around which the curtain coils. (Deflection is limited to 0.033" per lineal foot of span.) If required, barrel rings of malleable iron or stamped steel may be provided to assure proper countebalance. Oil-tempered, torsion-type counterbalance springs are wound from ASTM A229 steel, providing accuracy in balancing the door. Barrel plugs connect ends of springs to barrel and tension rod. Tension rod of steel shafting holds fixed ends of springs and carries torsional load of spring counterbalance.
Spring tension adjusting wheel is normally mounted outside the bracket on end of tension rod. Inside adjusting wheel for tight side-room applications is available in limited sizes.
The hood cover encloses the curtain coil and counterbalance mechanism. Slat hoods are available.
